SS-B Dewpoint Sample System

Specifically engineered to regulate sample line pressure, enabling controlled and accurate trace moisture measurement in process gases and dry compressed air.

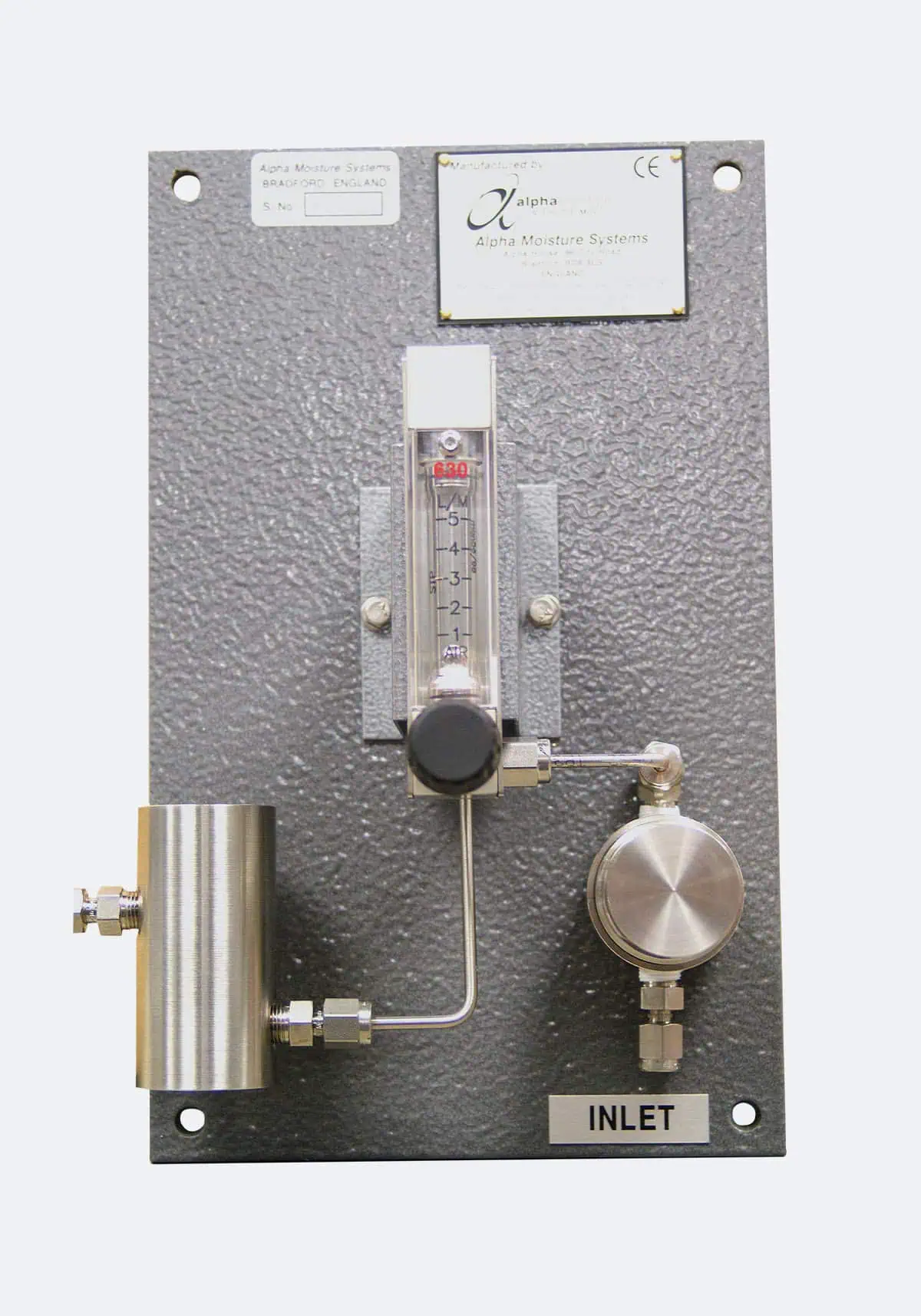

The SS-B Dewpoint Sample System delivers controlled and accurate trace moisture measurement in process gases and dry compressed air. It offers a low-cost, compact design that integrates essential components such as a pressure regulator, transmitter holder, and flow meter, capable of managing flow rates up to 5 litres per minute. Designed for wall mounting, the SS-B ensures optimal sampling conditions at atmospheric pressure, significantly enhancing the accuracy of dewpoint measurements.

Constructed with high-quality components including stainless steel fittings and a robust hammer-coated back plate, the SS-B provides dependable performance for a wide range of industrial applications. For specific requirements, our team can create custom-engineered solutions to meet precise analysis needs.

Whatever the challenge — Alpha Moisture Systems has you covered.

Highly customised solutions
Trusted by industry leaders
Distributors worldwide
Over 30 years experience

Advanced sampling of dry gas and compressed air

Key features

Cost-effective and compact design, ideal for applications where space and budget are limited
Durable construction, featuring a strong, pre-drilled 4mm hammer-coated wall mounting plate
Simple inlet connection positioned before the pressure regulator
Flow indicator capable of handling up to 5 litres per minute
Suitable for venting to the atmosphere or returning to the process
Sample inlet pressure regulator can handle up to 210 barg (3,045 psi)
Compatible with our AMT and PDT dewpoint transmitters or sensors

Technical Data

General
Sensor/Transmitter Type	Operational with 4-20mA Transmitters or Passive sensor
Approvals	CE, UKCA
Documentation	Instruction manual, calibration certificate
Sensor
Dewpoint Range	Please see relevant transmitter datasheet for ranges available
Sample Flow Rate	Flow Meter: 0-5 litres per minute
Mechanical
Dimensions in mm (H x W x D)	260 x 160 x 3
Operating Pressure	Pressure Regulator: Up to 210bar (3,045 PSI)
Fittings	Inlet/Outlet Fittings: 1/8”, 1/4” and 6mm tube
Mechanical Warranty	12 months in case of defective parts or faulty workmanship
Mounting	Mounting Holes: 4 x 4mm 10mm from edge

Downloads

Information coming soon.

What's in the box

SS-B Sample System

SS-B User Manual

Applications

AerospaceProduction of extremely high-specification aeronautical parts can require vacuum furnace heat treatment using very dry argon. NADCAP standards also specify testing welding shield gas at the torch head to ensure dryness. Continuous measurement of trace moisture ensures that the feed gas used for shielding remains within the specified moisture content range, allowing operators to maintain ideal conditions.

Food and BeverageIncorrect levels of moisture in foodstuffs can lead to loss of food quality. The shelf life of foods packaged in plastic can be extended by replacing ambient air with very dry gases such as Nitrogen and carbon dioxide between the foil layer and the food. The continuous measurement of trace moisture can significantly reduce waste and carbon footprint.

HDPE ProductionEthylene and propylene are perhaps the two most important compounds used in industry today, acting as building blocks for manufacturing a wide range of chemicals and plastics. Accurate and consistent measurement of trace moisture will help with process optimisation, prove gas product quality and polymerisation yield, and reduce corrosion in pipelines and maintenance costs.

Injection MouldingMoisture adsorbed on the surface of plastic pellets that feed injection moulders can cause extrusion failures, decreasing the strength of the product and affecting its surface finish, colour and opacity. Dry air circulates through the pellets, removing moisture, and ensuring they are dry. Increase process efficiency and decrease costs by measuring trace moisture to detect any failure of the dryer.

PharmaceuticalsExcessive or deficient moisture content can impact the physical properties of a pharmaceutical product, affecting the product’s chemical reactivity, binding properties and shelf life. Moisture content fluctuates from batch to batch, so a reliable method is required to determine accurate moisture content and achieve consistency. The trace moisture measurement instrument must be fast, repeatable and accurate for continuous online dewpoint control of blanketing gases.

Welding GasesWelding takes place in an atmosphere shielded by inert gases and different welding jobs require various inert gases. Monitoring oxygen levels is key to producing high output and superior weld seams. By continuously measuring moisture, the feed gas used for shielding remains within the specified moisture content range, allowing operators to maintain ideal conditions for welding.
